Zhongbo galvanized steel wire production and quality control
Quality Management

Quality Control & Testing for Galvanized Steel Wire & Strip

Zhongbo controls steel wire and steel strip quality through raw-material checks, production inspection, zinc-coating control, tensile-strength testing, dimension measurement, surface inspection, packing inspection and final-shipment checks. Test reports and third-party inspection can be arranged according to buyer requirements.

Coating weight and uniformity, tensile strength, diameter tolerance and surface finish are controlled in-process and verified before every shipment — under an ISO 9001 quality management system with full batch traceability.

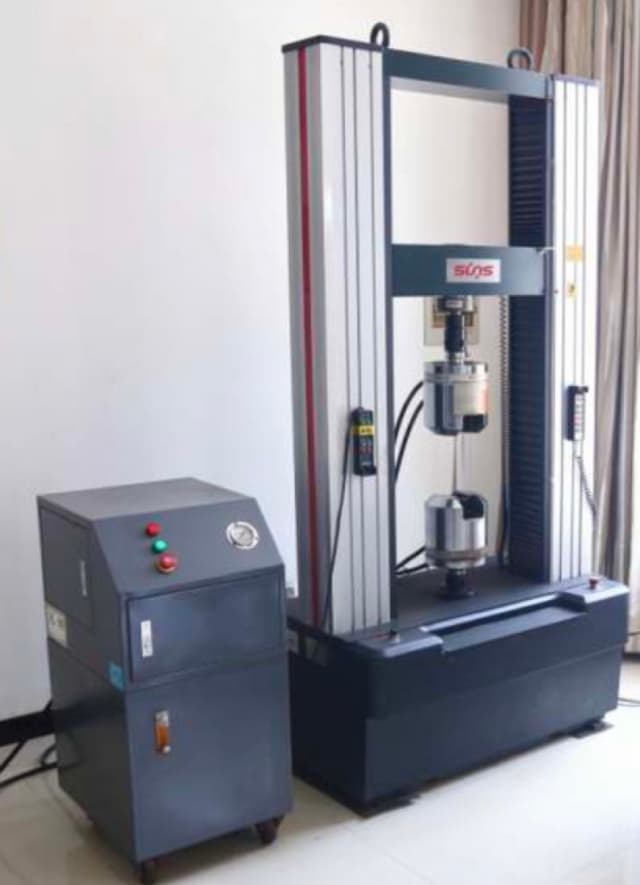

Galvanized wire tensile testing
0%
Batch
Tested
0
QC
Checkpoints
0
Standards
Controlled
What We Control

Key Quality-Control Parameters

Zinc Coating Weight & Uniformity

Controlled by ceramic zinc pot and nitrogen wiping; coating mass measured in g/m² on every batch.

Tensile Strength

Matched to your standard and tension-controlled during drawing, then tensile-tested per batch.

Diameter / Width Tolerance

Held in wire drawing and verified against specification for consistent, even stranding.

Elongation

Ductility controlled by annealing so the wire strands and bends without cracking.

Surface Finish & Unwinding

A smooth, clean, unwinding-free finish via controlled tension and precision spooling.

Coating Adhesion

Adhesion verified with wrap and twist tests to prevent flaking in service.

Control at Every Stage

Quality Checks Across Production

01

Incoming Material

Rod chemistry & size checked.

02

Wire Drawing

Diameter drawn to tolerance.

03

Annealing

Controlled for elongation.

04

Surface Prep

Pickling & fluxing verified.

05

Galvanizing

Coating weight controlled.

06

Wiping & Cooling

Coating wiped to target.

07

Surface & Size Check

Finish & diameter verified.

08

Final QC & Packing

Batch-tested, then packed.

Testing Items

What We Test on Every Batch

Test itemMethod / standardWhat we verify
Wire diameterMicrometer · ASTM A641 / EN 10244-2Within ordered tolerance
Zinc coating weightGravimetric / strip test (g/m²)Meets ordered coating class
Tensile strengthTensile test (MPa)Meets ordered grade
ElongationTensile test (%)Ductility for stranding & bending
Coating adhesionWrap / twist testNo flaking or cracking
Surface finishVisual + unwinding checkSmooth, unwinding-free
Coil / spool weightWeighingMatches packing spec
Packing conditionVisual, pre-shipmentSeaworthy, correctly marked
How It Holds Up

Control at the source, verified before shipment

Testing at the end only tells you whether a batch passed; controlling quality at the source is what makes it pass in the first place. At Zhongbo the parameters above are held in production — coating weight at the galvanizing line, tensile through drawing and annealing, diameter in the dies — rather than sorted out afterwards. Final per-batch testing then confirms the result before the material is released, so problems are designed out rather than caught late.

Every batch carries a heat and batch number that ties the finished coils back to the raw-material chemistry and the tests run along the way. That traceability means a mill test certificate is not just a set of numbers but a record that can be followed back to source if a customer ever needs to investigate a claim, requalify a product or satisfy their own audit. Certificates and test reports are issued against the standard you order to.

Because the same controls run on every order, the wire you approve on a first shipment is the wire you keep receiving. Where a buyer needs extra assurance, we add third-party or witnessed testing to the plan — verifying independently what our own quality system already controls.

Documentation & Inspection

Test Reports, Certificates & Inspection

Factory (mill) test reports covering diameter, zinc-coating weight, tensile strength and elongation can be issued per order. Third-party or pre-shipment inspection can be arranged when required by the buyer — we provide the samples, documentation and access needed.

Zhongbo operates an ISO 9001, ISO 14001 and ISO 45001 certified management system.

See the Proof Behind Our Quality Control

View Test Reports & Certificates
FAQ

Quality control questions

How do you keep the zinc coating uniform?

Coating uniformity is controlled by our ceramic zinc pot and nitrogen-wiping process, then verified by coating-mass testing (g/m²) on every batch before shipment.
